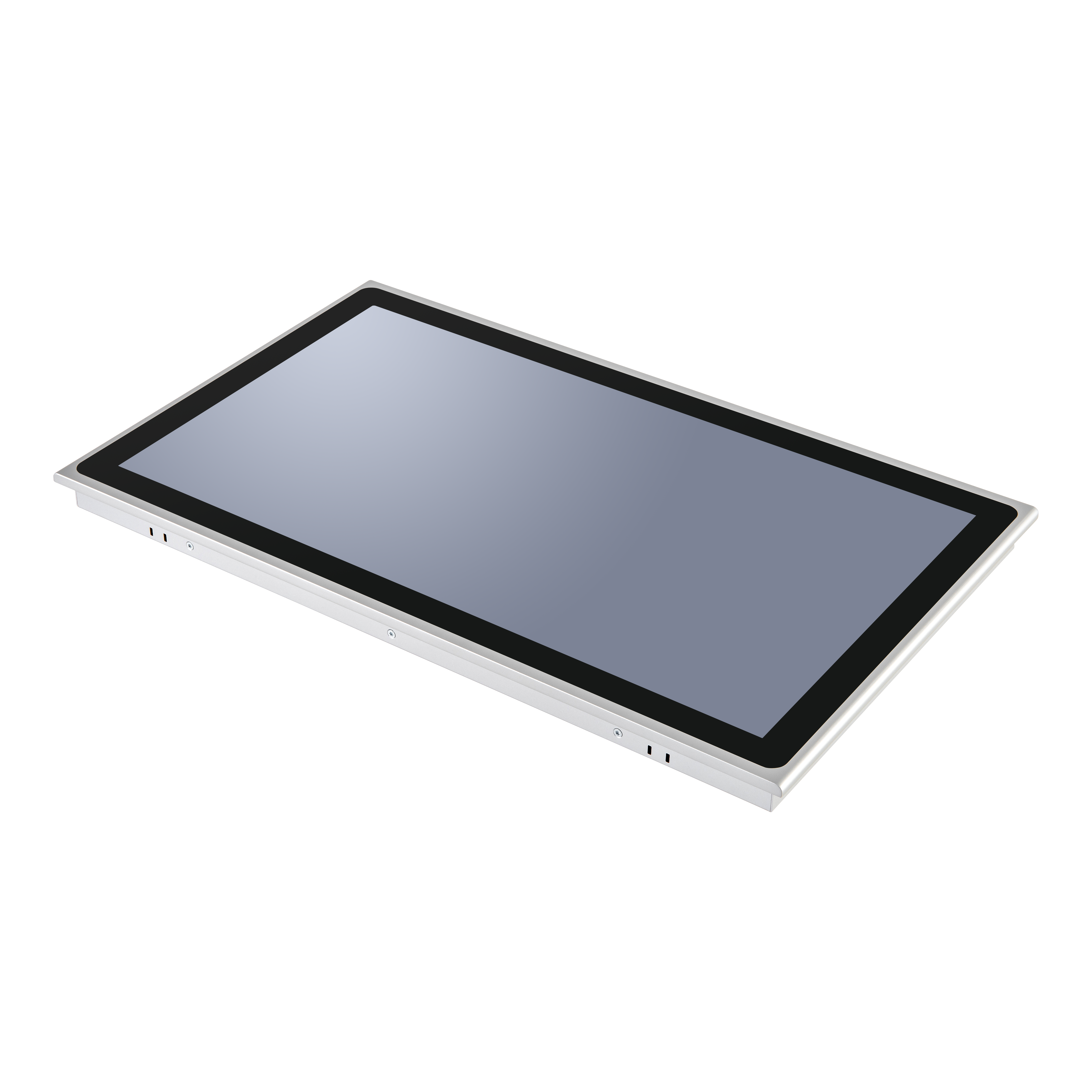

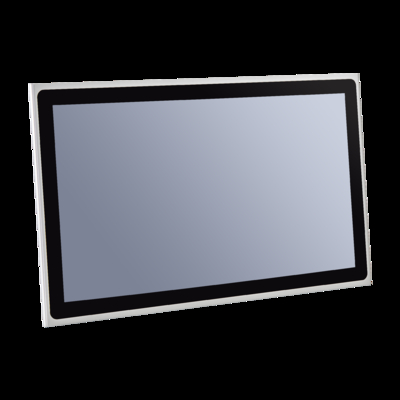

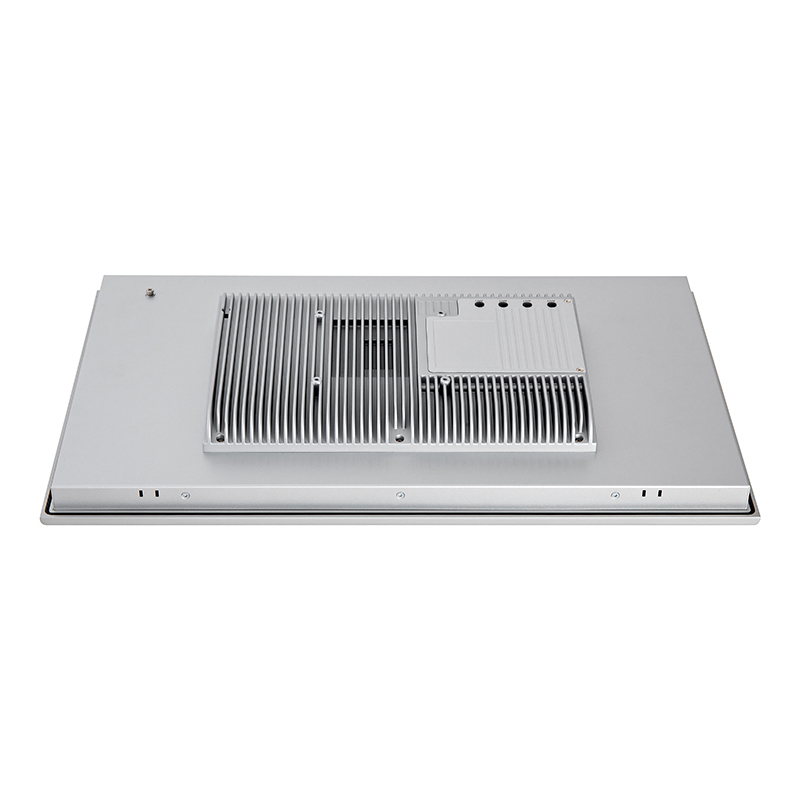

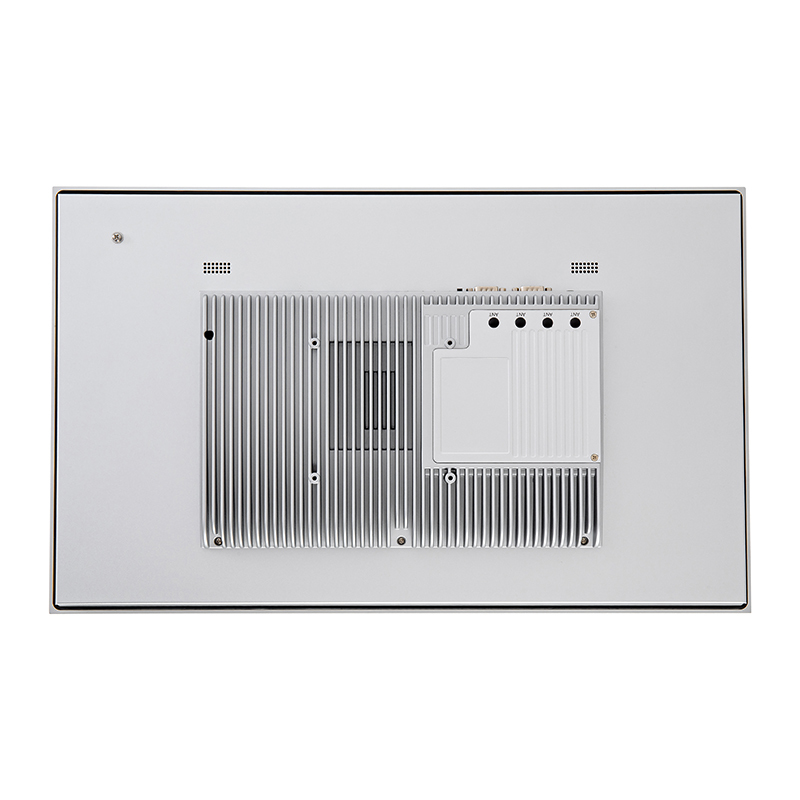

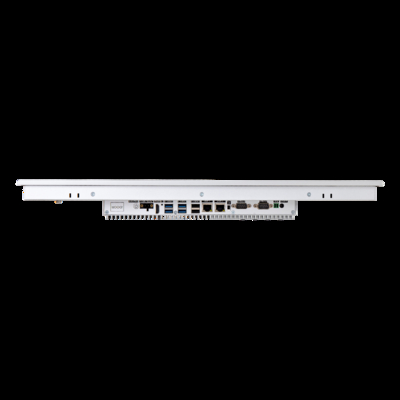

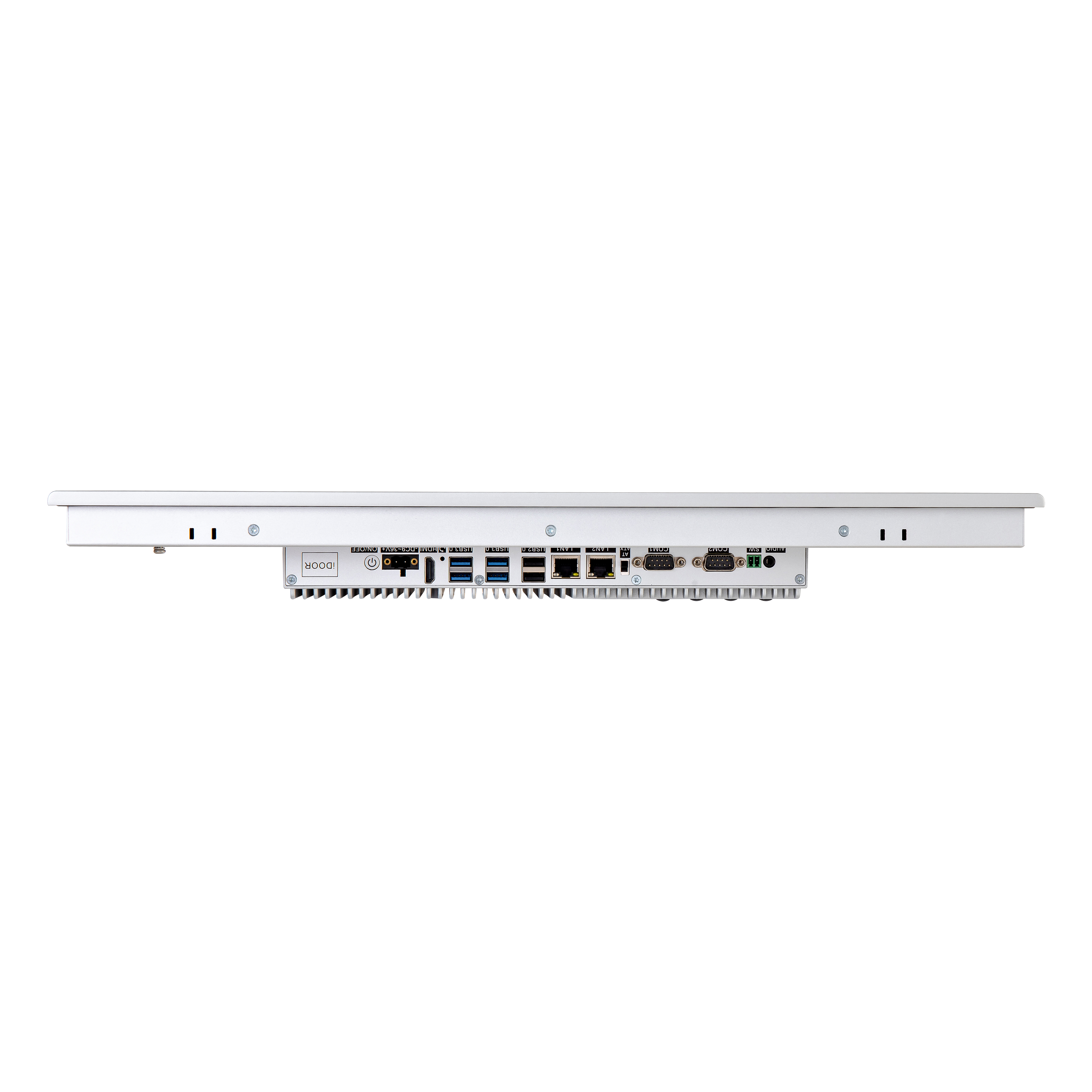

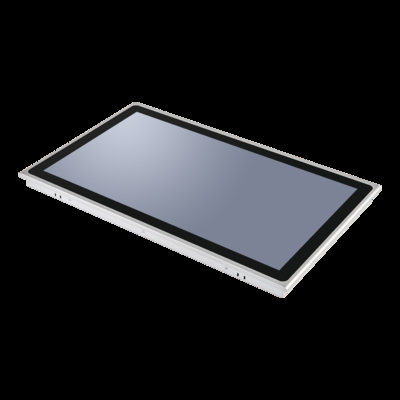

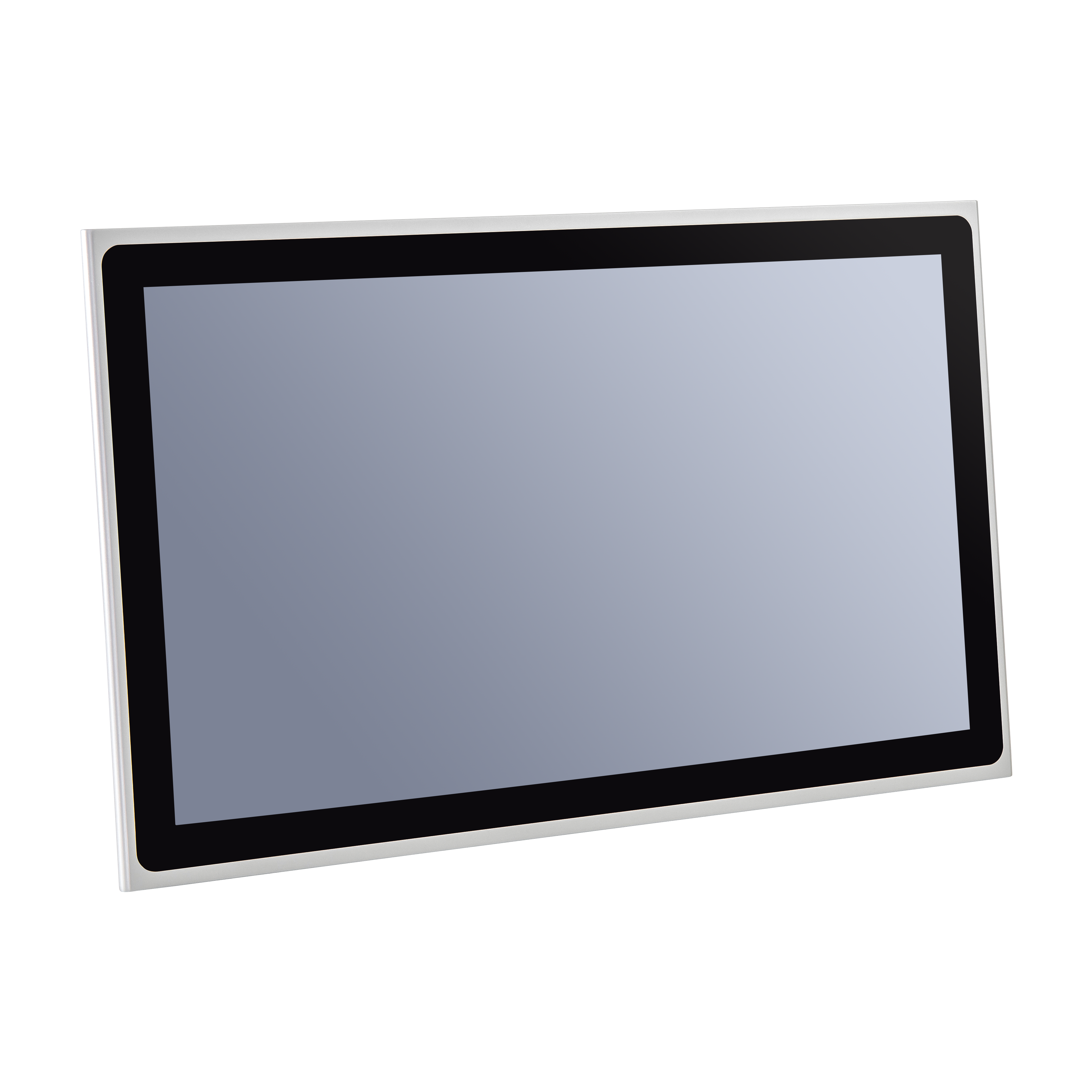

27" panel mount industrial HMI panel PC pure flat surface embedded touch computer

Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

27”/16:9

Active Area/ Pixel Pitch

597.888(H) ×336.312(V)mm/0.3114 × 0.3114mm

Native Resolution/ Colors

1920×1080/16.7M

Brightness/ Contrast

300cd/㎡/1000:1

Response Time/ Viewing Angle(Typical)

14ms/89/89/89/89

Light Source

LED Backlight with 30000Hours’Lifetime

Item

ARM Solution

X86 Solution 1

X86 Solution 2

CPU

ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional)

Intel® Celeron J1900/J4125/J6412 2.0GHz

Intel® Core i3/i5/i7

(4^th~12^th Generation optional)

Chipset

Rockchip

Intel Bay Trail SoC

Intel SoC Chipset

Memory

2GB; 4GB/8GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

DDR4 SODIMM ×2 (8th~12th gen.)

Storage

8GB; 16GB/32GB/64GB/128G Optional

1×mSATA, 1×SATA

1×M.2 (not available for J1900) Default to 64GB SSD

1×mSATA, 1×SATA

1×M.2 Default to 64GB SSD

Graphics

Supports max. 4K resolution

Intel HD/UHD Graphics (By CPU)

Intel HD/UHD Graphics (By CPU)

I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM port max. 6; 1×Realtek ALC662

Line-Out /MIC IN

1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662

Line-Out /MIC IN

LAN

1×10/100/1000Mbps Ethernet

1× 10/100/1000Mbps Ethernet( Dual LAN optional)

1×10/100/1000Mbps Ethernet( Dual LAN optional)

OS

Android 7.1/8/10/11/12, etc.

Linux Ubuntu(optional)

Windows 7/10, Linux

Windows 11(available for J4125/J6412)

Windows 7/10, Linux

Windows 11(available for 7^th gen. or above)
